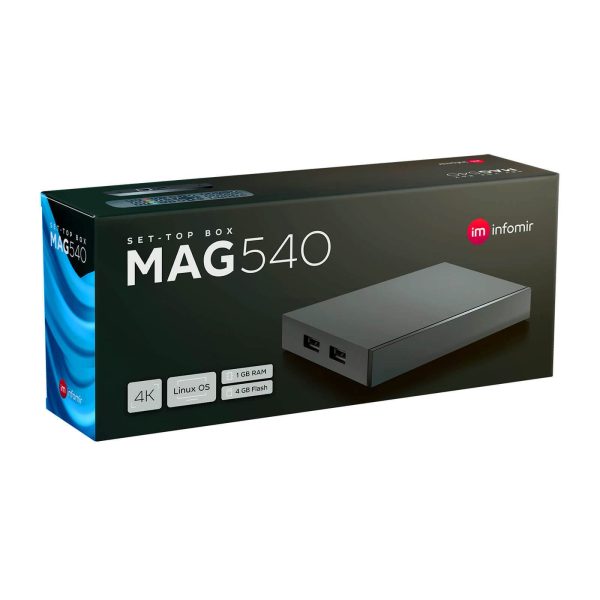

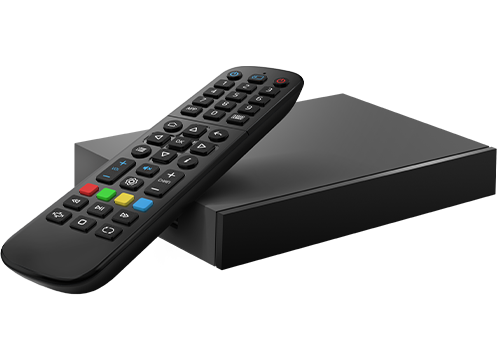

Infomir TV Box MAG540 4K

  MAG540 High-performance 4K STBs with a brand new ARM Cortex-A35 CPU MAG540 are Linux STBs powered by the quad-core ARM Cortex-A35 CPU with a brand new Amlogic S905Y4 chipset. This hardware makes the model much more powerful than the legacy STBs. The devices ensure easy and smooth playback of content in all popular modern video formats, including 4K. With MAG540/540w3, operators can offer reliable service to their subscribers. The interface continuity makes the model easy to integrate into projects that previously used MAG set-top boxes. Infomir can integrate set-top boxes with CAS/DRM and middleware at the operator’s request. Specifications Audio & video Video modes PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K) Audio codecs MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™ Video codecs MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support Video containers TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB Image formats JPEG, PNG, BMP, RAW Subtitles DVB, PGS, SRT, SSA/ASS, SUB, teletext, WebVtt, closed captions Playlist formats M3U, M3U8, PLS, CUE Hardware Chipset Amlogic S905Y4-B Performance 16 500 DMIPS Processor Quad-core ARM Cortex-A35, 2,000 MHz RAM 1 GB LPDDR4 Flash memory 4 GB eMMC Firmware and CAS/DRM Operating system Linux 4.9 CAS/DRM Upon request Middleware supported Pre-integrated Ministra TV platform. Image enhancement with operator apps, customization, or a full replacement is available. Interfaces Digital ports HDMI 2.1 Ethernet 100 Mbps USB USB 2.0 × 2 Wi-Fi Built-in 2T2R ac (MAG540w3 only) Power input Power adapter DC 5V, 2A (DC 12V, 1А optional) Dimensions W/D/H 120 × 78 × 21 mm
Close

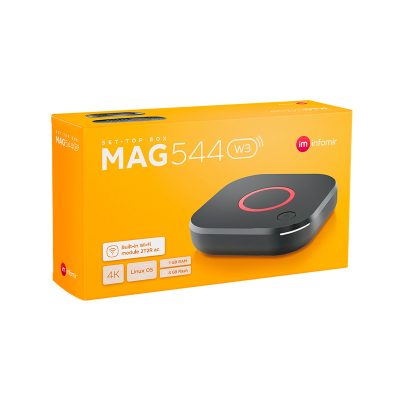

Infomir TV Box MAG544w3 4K

  Specifications Audio & video Video modes    : PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K) Audio codecs: MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus Video codecs: MPEG1/2 MP @ HL, MPEG4 part 2 (ASP), H.265 Main/Main 10 @ L5.1 High 2160p @ 60 fps (optional), H.264 AVC High @ L5.1 2160p @ 30 fps, XviD, 3D video support Video containers: TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB Image formats: JPEG, PNG, BMP, RAW Subtitles: DVB, PGS, SRT, SSA/ASS, SUB, teletext, WebVtt, closed captions Playlist formats: M3U, M3U8, PLS, CUE Hardware Chipset:    Amlogic S905Y4-B Performance:    16 500 DMIPS Processor:    Quad-core ARM Cortex-A35, 2,000 MHz RAM:    1 GB LPDDR4 Flash memory:    4 GB eMMC Firmware and CAS/DRM Operating system    Linux 4.9 CAS/DRM    Upon request Middleware supported Pre-integrated Ministra TV platform. Image enhancement with operator apps, customization, or a full replacement is available. Interfaces Digital ports    HDMI 2.1 Ethernet    100 Mbps USB    USB 2.0 × 2 Wi-Fi    Built-in 2T2R ac Power input Power adapter    DC 5V, 2A (DC 12V, 1А optional) Dimensions W/D/H    115 × 115 × 28 mm
Close

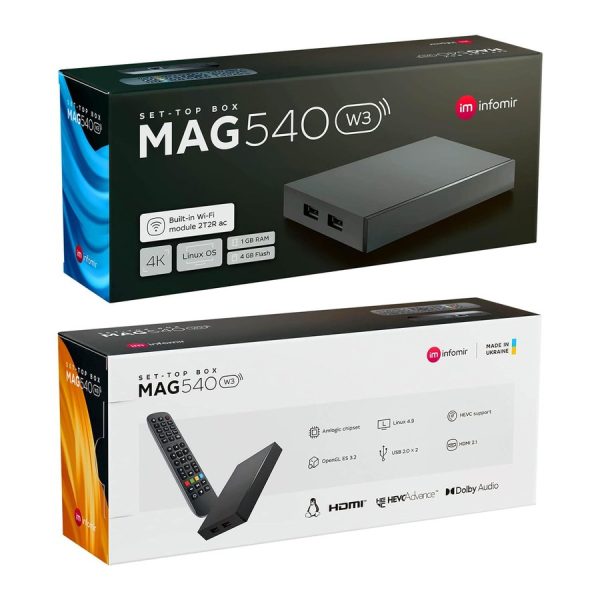

Infomir TV Box MAG540w3 4K

  MAG540w3 High-performance 4K STBs with a brand new ARM Cortex-A35 CPU MAG540w3 are Linux STBs powered by the quad-core ARM Cortex-A35 CPU with a brand new Amlogic S905Y4 chipset. This hardware makes the model much more powerful than the legacy STBs. The devices ensure easy and smooth playback of content in all popular modern video formats, including 4K. With MAG540/540w3, operators can offer reliable service to their subscribers. The interface continuity makes the model easy to integrate into projects that previously used MAG set-top boxes. Infomir can integrate set-top boxes with CAS/DRM and middleware at the operator’s request. Specifications Audio & video Video modes PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K) Audio codecs MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™ Video codecs MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support Video containers TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB Image formats JPEG, PNG, BMP, RAW Subtitles DVB, PGS, SRT, SSA/ASS, SUB, teletext, WebVtt, closed captions Playlist formats M3U, M3U8, PLS, CUE Hardware Chipset Amlogic S905Y4-B Performance 16 500 DMIPS Processor Quad-core ARM Cortex-A35, 2,000 MHz RAM 1 GB LPDDR4 Flash memory 4 GB eMMC Firmware and CAS/DRM Operating system Linux 4.9 CAS/DRM Upon request Middleware supported Pre-integrated Ministra TV platform. Image enhancement with operator apps, customization, or a full replacement is available. Interfaces Digital ports HDMI 2.1 Ethernet 100 Mbps USB USB 2.0 × 2 Wi-Fi Built-in 2T2R ac (MAG540w3 only) Power input Power adapter DC 5V, 2A (DC 12V, 1А optional) Dimensions W/D/H 120 × 78 × 21 mm
Close

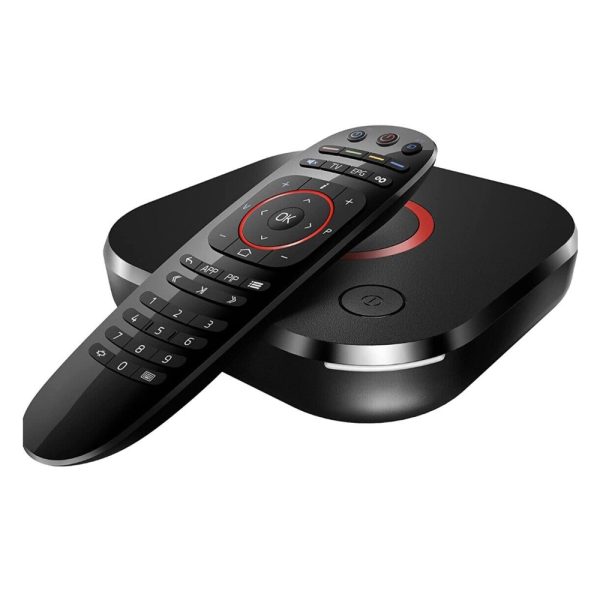

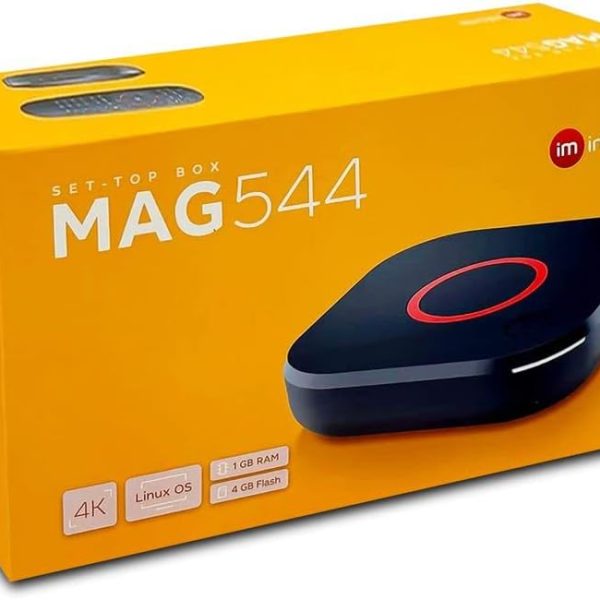

Infomir TV Box MAG544 4K

  Specifications Audio & video Video modes    : PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K) Audio codecs: MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus Video codecs: MPEG1/2 MP @ HL, MPEG4 part 2 (ASP), H.265 Main/Main 10 @ L5.1 High 2160p @ 60 fps (optional), H.264 AVC High @ L5.1 2160p @ 30 fps, XviD, 3D video support Video containers: TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB Image formats: JPEG, PNG, BMP, RAW Subtitles: DVB, PGS, SRT, SSA/ASS, SUB, teletext, WebVtt, closed captions Playlist formats: M3U, M3U8, PLS, CUE Hardware Chipset:    Amlogic S905Y4-B Performance:    16 500 DMIPS Processor:    Quad-core ARM Cortex-A35, 2,000 MHz RAM:    1 GB LPDDR4 Flash memory:    4 GB eMMC Firmware and CAS/DRM Operating system    Linux 4.9 CAS/DRM    Upon request Middleware supported Pre-integrated Ministra TV platform. Image enhancement with operator apps, customization, or a full replacement is available. Interfaces Digital ports    HDMI 2.1 Ethernet    100 Mbps USB    USB 2.0 × 2 Power input Power adapter    DC 5V, 2A (DC 12V, 1А optional) Dimensions W/D/H    115 × 115 × 28 mm
