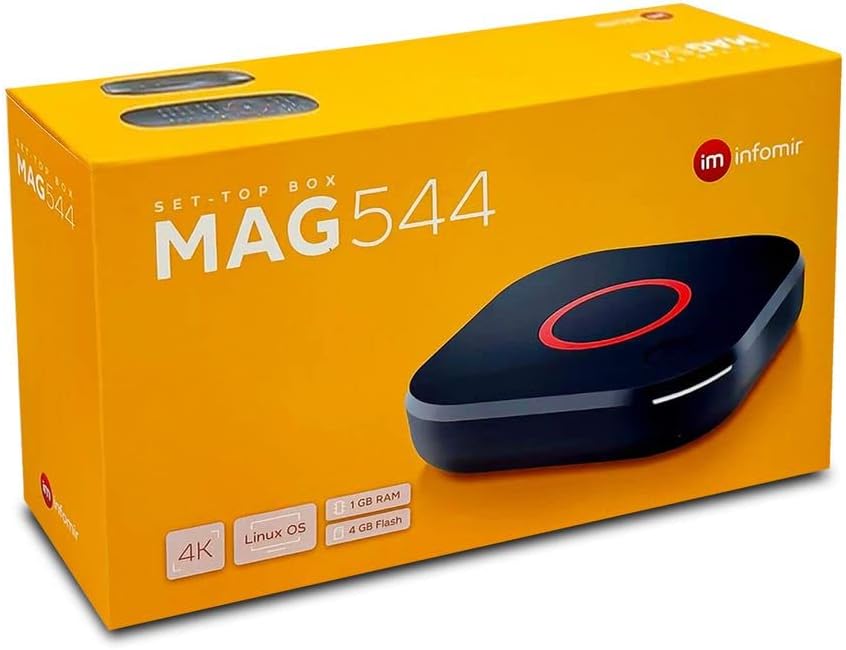

Infomir TV Box MAG544 4K
Κωδικός προϊόντος: 0000470
Άμεση παραλαβή / Παράδoση 1 έως 3
Specifications
Audio & video
Video modes :
PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
Audio codecs:
MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus
Video codecs:
MPEG1/2 MP @ HL, MPEG4 part 2 (ASP), H.265 Main/Main 10 @ L5.1
High 2160p @ 60 fps (optional), H.264 AVC High @ L5.1 2160p @ 30 fps,
XviD, 3D video support
Video containers:
TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
Image formats:
JPEG, PNG, BMP, RAW
Subtitles:
DVB, PGS, SRT, SSA/ASS, SUB, teletext, WebVtt, closed captions
Playlist formats:
M3U, M3U8, PLS, CUE
Hardware
Chipset: Amlogic S905Y4-B
Performance: 16 500 DMIPS
Processor: Quad-core ARM Cortex-A35, 2,000 MHz
RAM: 1 GB LPDDR4
Flash memory: 4 GB eMMC
Firmware and CAS/DRM
Operating system Linux 4.9
CAS/DRM Upon request
Middleware supported
Pre-integrated Ministra TV platform.
Image enhancement with operator apps,
customization, or a full replacement is available.
Interfaces
Digital ports HDMI 2.1
Ethernet 100 Mbps
USB USB 2.0 × 2
Power input
Power adapter DC 5V, 2A (DC 12V, 1А optional)
Dimensions
W/D/H 115 × 115 × 28 mm
Related products
ΔΕΚΤHΣ ΕΠΙΓΕΙΟΣ DVB Terrestrial-T265+
Υποστηρίζει αναλύσεις: Έως και Full HD 1080 / H265
Χαρακτηριστικά
- Fully DVB-T/T2 compliant
- Full HD 1080p
- Video Output: HD/SD,
- HDMI1.4 ,SCART
- Self learning RCU
- MPEG 1/2/4 stereo
- Multilanguage OSD Media Player
- 7 Days EPG ( Electronic Program Guide)
- Preview of TV channel
- PVR/Timeshift supported
- Γονικό κλείδωμα για κανάλια και μενού.
- H265
- Υποστήριξη υποτίτλων και Teletext Αποθήκευση
- USB 2.0: Σύστημα αρχείων FAT16 / 32 και NTFS
- Εύκολη και γρήγορη αναβάθμιση λογισμικού μέσω θύρας USB
- Πάνω από 1000 κανάλια χωρητικότητα καναλιών TV και ραδιοφώνου.
- Τάση κεραίας 5 Volt για ενεργές κεραίες Κουμπιά λειτουργίας, και ψηφιακή οθόνη 4 χαρακτήρων
- Λειτουργία αυτόματης αναμονής μετά από 3 ώρες.
- Χαμηλή κατανάλωση ενέργειας σε κατάσταση αναμονής κάτω από 1W
- Video Decode: ISO/IEC 13818-2 MPEG1, MPEG-2MP@HL, H.264,H.265, VC1, VP8 Profile
- Level: HD Formats: MPEG-2, MP@HL, MPEG-4, SP@L3 to ASP@L5, Level3.1/4.1
- Video Format: 4:3, 16:9 Pan&Scan, Letterbox
- Graphic: 2D Graphic engine
- Video System: PAL, NTSC
- VideoResolution:480i,480p,576i,576p,720P,1080i,1080P
- Audio Decode : MPEG-1/2 layer I and II (Music cam),MPEG4 AAC and MPEG4 AAC-HE (AAC+),
- Dolby Digital (AC-3) with bit rates up to 640Kbits/s,
- LPCM up to 48KHz, MP3
Infomir TV Box MAG544w3 4K
Specifications
Audio & video
Video modes :
PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
Audio codecs:
MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus
Video codecs:
MPEG1/2 MP @ HL, MPEG4 part 2 (ASP), H.265 Main/Main 10 @ L5.1
High 2160p @ 60 fps (optional), H.264 AVC High @ L5.1 2160p @ 30 fps,
XviD, 3D video support
Video containers:
TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
Image formats:
JPEG, PNG, BMP, RAW
Subtitles:
DVB, PGS, SRT, SSA/ASS, SUB, teletext, WebVtt, closed captions
Playlist formats:
M3U, M3U8, PLS, CUE
Hardware
Chipset: Amlogic S905Y4-B
Performance: 16 500 DMIPS
Processor: Quad-core ARM Cortex-A35, 2,000 MHz
RAM: 1 GB LPDDR4
Flash memory: 4 GB eMMC
Firmware and CAS/DRM
Operating system Linux 4.9
CAS/DRM Upon request
Middleware supported
Pre-integrated Ministra TV platform.
Image enhancement with operator apps,
customization, or a full replacement is available.
Interfaces
Digital ports HDMI 2.1
Ethernet 100 Mbps
USB USB 2.0 × 2
Wi-Fi Built-in 2T2R ac
Power input
Power adapter DC 5V, 2A (DC 12V, 1А optional)
Dimensions
W/D/H 115 × 115 × 28 mm
TV-BOX X96 Max+ android 2GB+16GB Amlogic S905X2
TV-BOX X96 Max+
Infomir TV Box MAG540w3 4K
MAG540w3
High-performance 4K STBs with a brand new
ARM Cortex-A35 CPU
MAG540w3 are Linux STBs powered by the quad-core ARM Cortex-A35 CPU with a brand new Amlogic S905Y4 chipset.
This hardware makes the model much more powerful than the legacy STBs.
The devices ensure easy and smooth playback of content in all popular modern video formats, including 4K.
With MAG540/540w3, operators can offer reliable service to their subscribers.
The interface continuity makes the model easy to integrate into projects that previously used MAG set-top boxes. Infomir can integrate set-top boxes with CAS/DRM and middleware at the operator’s request.
Specifications
Audio & video
Video modes PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
Audio codecs MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
Video codecs MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
Video containers TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
Image formats JPEG, PNG, BMP, RAW
Subtitles DVB, PGS, SRT, SSA/ASS, SUB, teletext, WebVtt, closed captions
Playlist formats M3U, M3U8, PLS, CUE
Hardware
Chipset Amlogic S905Y4-B
Performance 16 500 DMIPS
Processor Quad-core ARM Cortex-A35, 2,000 MHz
RAM 1 GB LPDDR4
Flash memory 4 GB eMMC
Firmware and CAS/DRM
Operating system Linux 4.9
CAS/DRM Upon request
Middleware supported Pre-integrated Ministra TV platform. Image enhancement with operator apps, customization, or a full replacement is available.
Interfaces
Digital ports HDMI 2.1
Ethernet 100 Mbps
USB USB 2.0 × 2
Wi-Fi Built-in 2T2R ac (MAG540w3 only)
Power input
Power adapter DC 5V, 2A (DC 12V, 1А optional)
Dimensions
W/D/H 120 × 78 × 21 mm
