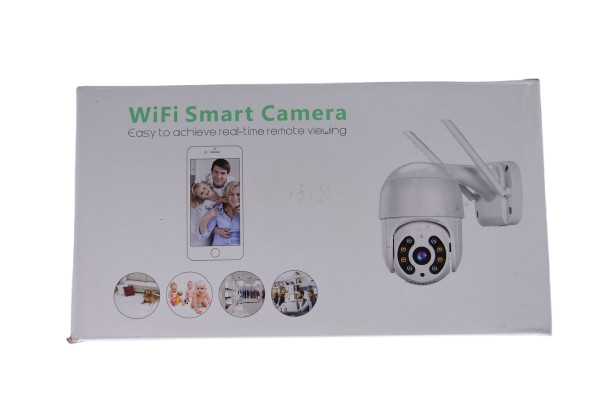

Outdoor PTZ Camera,N8-500W.ICsee APP.2,4G WiFi 5MP.White Color.Without Power Adapter

System structure

dual-core 32-bit DSP（XM530V200）,pure hard compression ,watch dog

Sensor

High performance CMOS sensor

Video compression

H.265AI coding,support dual stream,AVI;0.1M~10Mpbs variable

Min.Illumination

Color：0.01Lux @(F1.2,AGC ON); 0 Lux with IR

Black/White: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR

Image output

Main stream: 2560*1440@12fps; sub-stream: 800*448@12fps

Shutter

1/50(1/60)s to 1/10,000s

Lens

N/A

Day and night

Support IR-CUT

Noise reduction

Support 2D/3D

Wide dynamic

Support

Auto iris

N/A

Audio compression

G.711 standard compression,support two-way Bidrectional Talk,support for audio and video synchronization

Audio interface

1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone;

Network interface

1 RJ45 Ethernet interface, 10/100M adaptive

Extension interface

N/A

Singal interface

one IR-CUT interface

PTZ interface

One horizontal motor interface, one vertical electrical interface

Alarm I/O

N/A

Network interface

supporting wireless network connection

Reset interface

Support

Storage mode

Local TF card, up to 128G; cloud storage

Reliability

Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing

Intelligence analysis

Supporting human detection ,support to customizing other intelligent functions

Other function

It supports remote monitoring of mobile client, push message after alarm of human figure detection, and supports MJPEG

capture;

ONVIF

support

Mobile monitoring

support

Power

DC12V

Dimension

19.5*18*12(CM)
